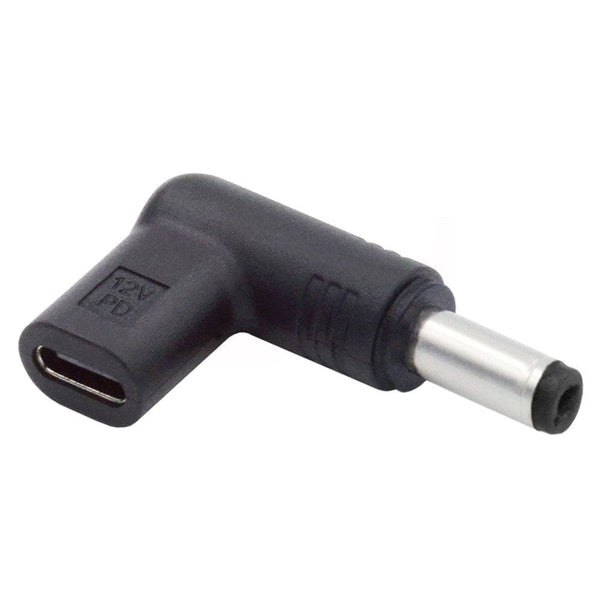

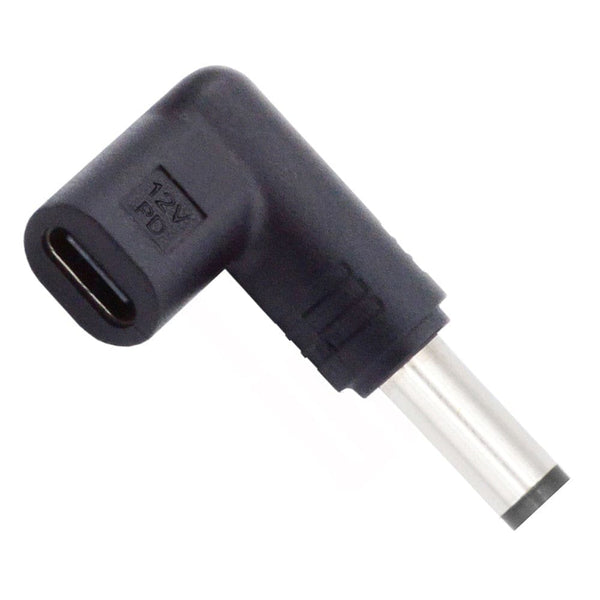

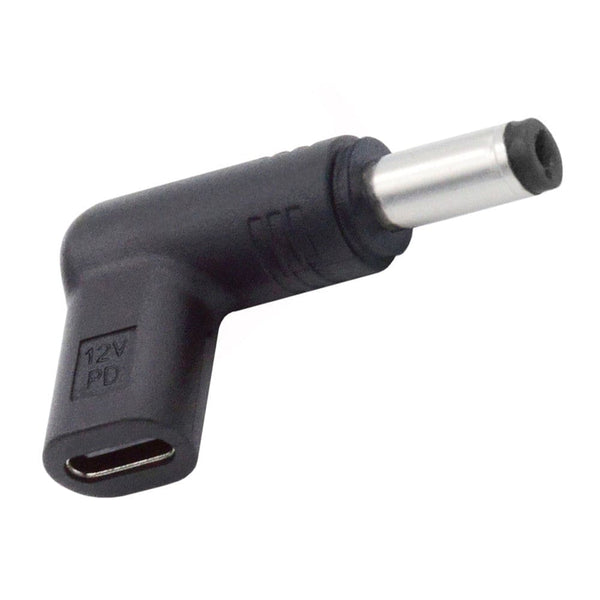

UC-090 90-Degree Angled USB Type-C Female to DC 12V Plug Adapter with PD Emulator Trigger (5.5mm x 2.1mm)

The UC-090 90-Degree Angled USB Type-C Female to DC Adapter bridges modern USB Power Delivery technology with legacy DC-powered electronics. Engineered with a built-in 12V Power Delivery (PD) emulator trigger chip at the Type-C female terminal, this converter negotiates directly with compatible USB-C wall chargers or power banks to output a fixed 12V DC current. The space-saving 90-degree right-angle design routes power cleanly behind routers, monitors, laptops, and networking gear without straining cords or blocking adjacent ports 🔌.

Designed for seamless power conversion, this adapter pairs ideally with 65W or higher PD USB-C chargers to run devices requiring a standard 5.5mm x 2.1mm barrel plug input. Its dedicated single-voltage architecture ensures stable, reliable delivery of 12V power without stepping down or fluctuating across multi-voltage profiles. Compact, durable, and lightweight, it provides an essential tool for powering DC devices directly from modern Type-C power sources ⚡.

• Product Model: UC-090
• Input Interface: USB Type-C Female (optimized for 65W+ PD Type-C chargers)

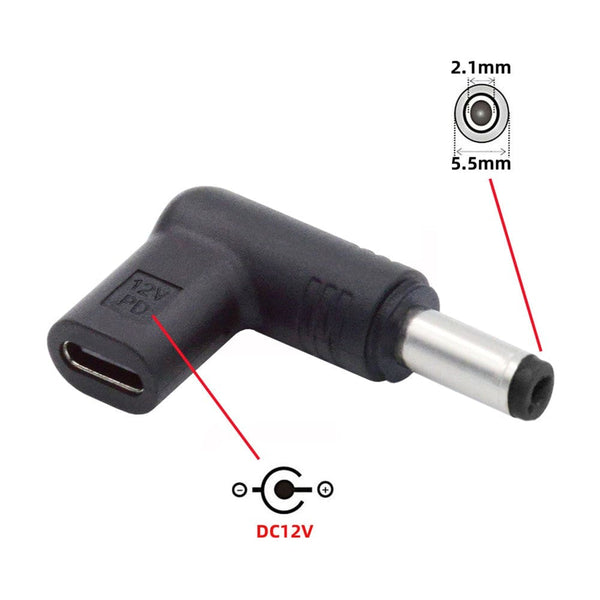

• Output Interface: DC Male Barrel Plug (5.5mm x 2.1mm dimensions)

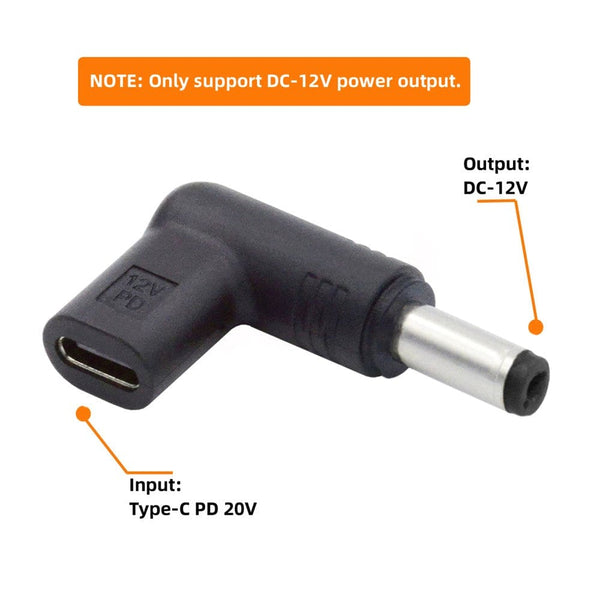

• Output Voltage: Fixed DC 12V only (does not support 5V, 9V, 15V, or 20V multi-voltage stepping)

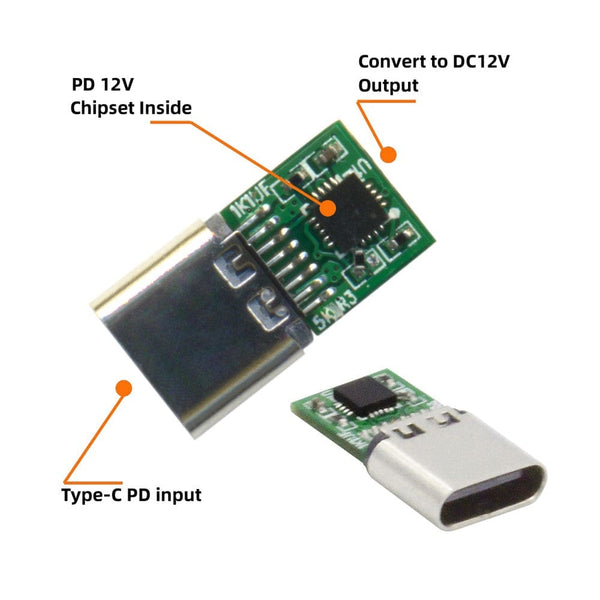

• Internal Hardware: Built-in 12V PD emulator trigger chip

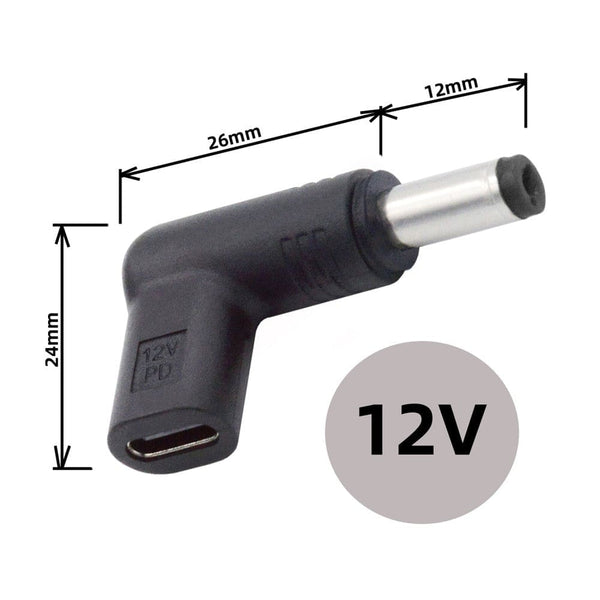

• Design Feature: 90-degree right-angle elbow connector orientation

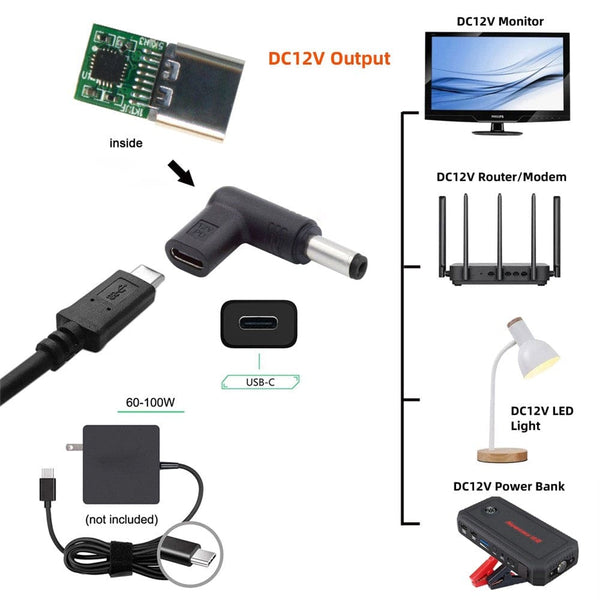

• Primary Uses: Powering laptops, routers, LED drivers, and small electronics from USB-C PD power supplies
